All payment needs covered

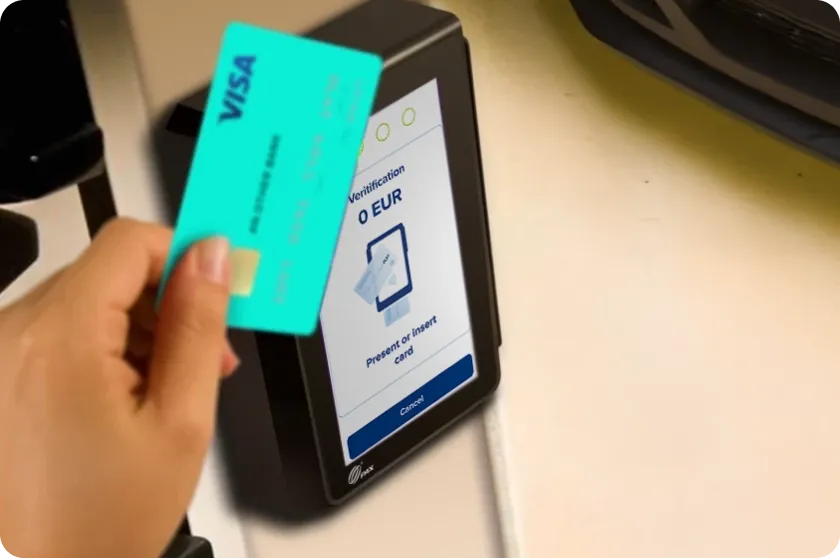

The Direct Payment Terminal solution, makes it super easy and affordable to dive into card payments using VISA & Mastercard, whether it’s credit or debit cards.

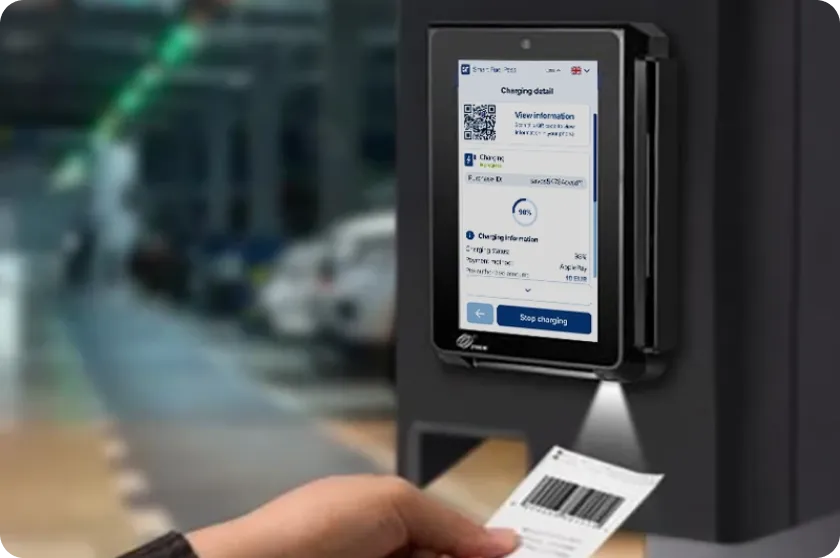

Whether you’re looking to set up new charging stations or upgrade an existing one with a credit card terminal, Direct payment terminals can be installed right into the charging stations or set up as a stand-alone unit on a pedestal.
OPT solution features
- Remote installation of payment application and card keys (remote keying), without the need to conclude additional contracts with the payment processor and acquiring bank
- Crediting money as soon as charging is over
- Possibility of self-installation of OPT by the client
- Remote SW maintenance support
- One terminal operating in kiosk mode controlling multiple EV chargers
- Support for starting and controlling multiple charging sessions on one OPT at once
- Display the current price for each charging service – tariff
- Custom pre-charging customer pre-authorization amount
- Control of exceeding the pre-authorized amount by stopping charging
- Displaying an ongoing charging session on the OPT screen
- Possibility to transfer the ongoing charging session by the customer in their web browser
OPT solution features
- Remote installation of payment application and card keys (remote keying), without the need to conclude additional contracts with the payment processor and acquiring bank
- Crediting money as soon as charging is over
- Possibility of self-installation of OPT by the client
- Remote SW maintenance support
- One terminal operating in kiosk mode controlling multiple EV chargers
- Support for starting and controlling multiple charging sessions on one OPT at once
- Display the current price for each charging service – tariff
- Custom pre-charging customer pre-authorization amount
- Control of exceeding the pre-authorized amount by stopping charging
- Displaying an ongoing charging session on the OPT screen
- Possibility to transfer the ongoing charging session by the customer in their web browser

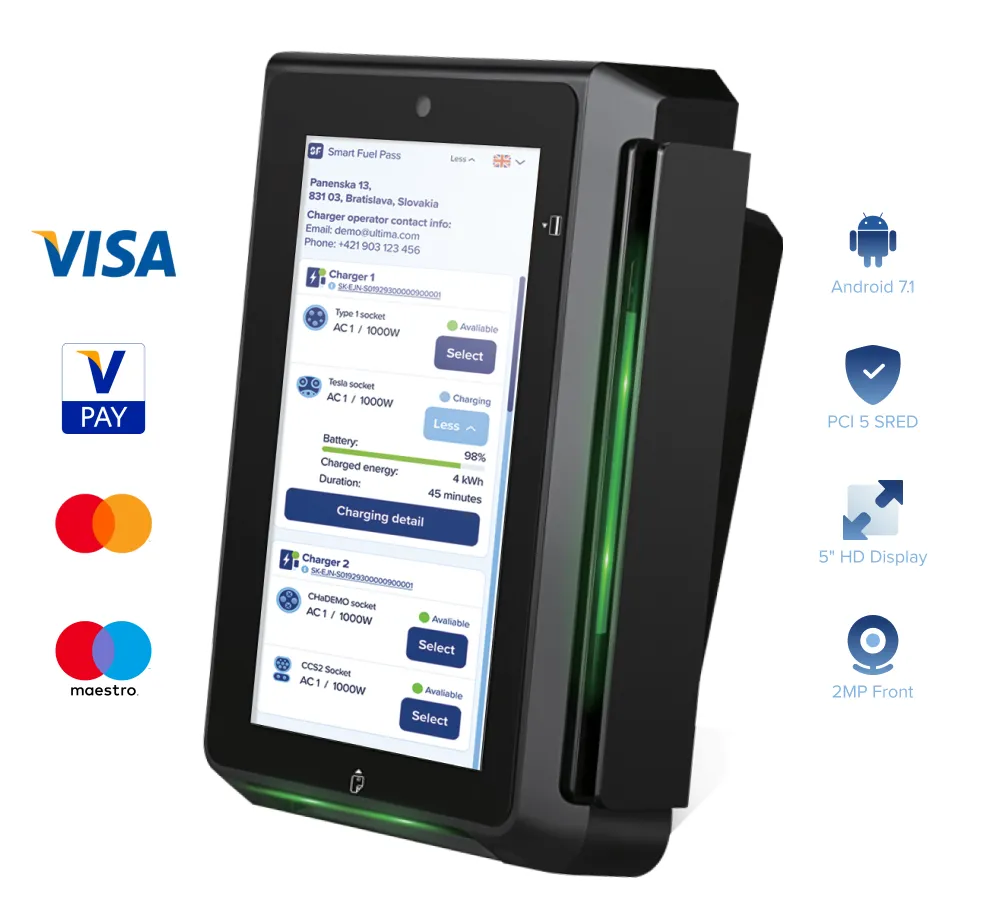

HW Specifications
| Operating Sytem | PayDroid Powered by Android 7.1 |
|---|---|
|
Processor |
Cortex A53 |
|
Memory |
8GB Flash + 1GB LPDDR3 RAM | Optional: 2GB LPDDR3 RAM |
|
Card Readers |
Chip & PIN | NFC Contactless | Magnetic Stripe |
|
Cameras |
2MP Front-Facing |
|
QR Scanner |
0.3 MP | Reads 1D & 2D codes |
|
Display |
5” TFT WXGA 720 x 1280 |
|
Comms Configurations |
4G + Ethernet + WiFi (Dual band) + Bluetooth 5.0Ethernet + WiFi (Dual band) + Bluetooth 5.0Ethernet-only |
|
Power |
12V – 48V DC via MDB Slave | 12V – 48V DC via RS23219V – 30V AC via Executive |
|
SIM / SAM |
2 SAM (optional 4) |
|
Audio |
1 Speaker |
|
Ports |
2 RS232 | 1 USB Host | 1 USB OTG | 1 LAN | 1 MDB Slave | 1 HDMI1 Digital I/Os | 1 Mic & Speaker | 1 MDB Master & Executive1 SMA (optional) | 1 SIM slot (optional) |
|
Physical |
External dimension: W * H * D: 105 * 146 *57 mmInstallation cutout: W * H: 82 * 107 mmWeight: 486g |
|
Environmental |
-20°C ~ 70°C (-4°F ~ 158°F) Operating Temperature-30°C ~ 70°C (-22°F ~ 158°F) Storage Temperature5% ~ 95% Relative Humidity, Non-Condensing |
|
Accessories |
Mounting FixtureExternal Antenna (optional) |
|
Certifications |
PCI PTS 5.x SRED | EMV L1 & L2 | EMV Contactless L1 | Visa payWave |MasterCard Contactless | UPI qUICS | Amex ExpressPay | Discover D-PAS |JCB J/Speedy | Interac Flash | MasterCard TQM | Common.SECC UKCC | CE |RoHs | ULK | IC | FCC | ATEX | IP55 | IK08 |
Safety and usage
- The system handbook should be studied before integrating the product as this contains important information regarding installation.
- Damage from not following the guidelines or from incorrect operation will void the guarantee. No liability will be accepted for any consequential damage.
- In case of the non-observance of safety notices or incorrect use, no liability will be assumed for any damage that occurs.
- No liability will be accepted for damage or injury resulting from incorrect operation or from failure to observe the safety guidelines.
- Never remove the power supply, whilst this is performing a payment or other active functions (i.e. display indication “please wait”). Please contact your network provider if such a message appears for a longer period.
- The terminal is certified for cashless payments in various countries, dependent on the network provider/acquirer.
- Never try to open the terminal. Unauthorized opening leads to deletion of all secure data, activating the fraud function and setting the terminal out of order. This also voids the warranty.
- Never submerge the terminal in water, throw into fire or expose to high humidity. The device should be cleaned with a soft damp cloth. Do not use chemical cleaners.
- Repairs may only be performed by authorized agents of Smart Fuel Pass.
- Do not expose the device to temperatures outside the approved limits.
